Flip-Down Ceiling TV Lifts
Made in India · 3-year warranty · pan-India delivery · remote installation support.

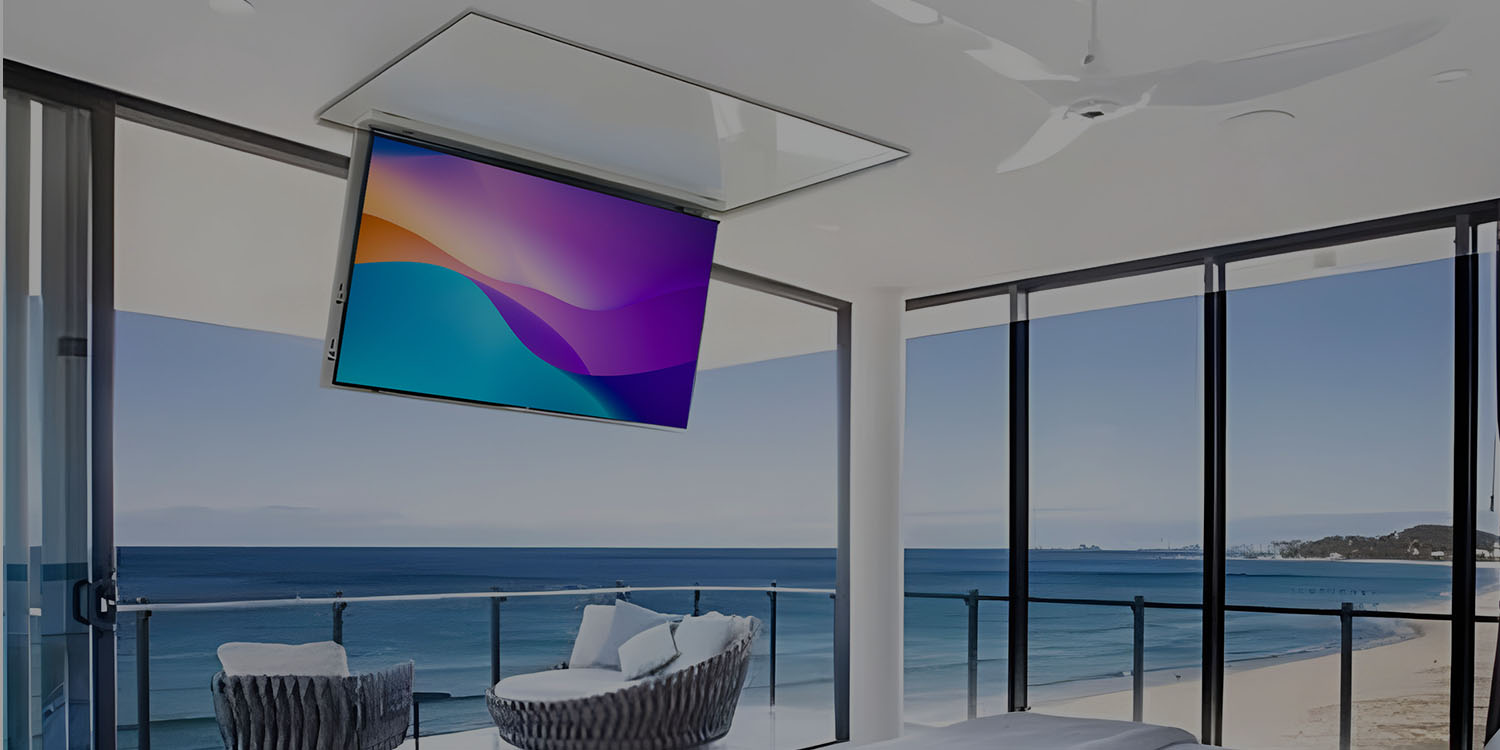

A flip-down ceiling TV lift mounts a flat-screen television flush against the ceiling and lowers it into viewing position at the press of a button. When not in use, the screen folds back up and out of sight, freeing wall space and keeping the room uncluttered. Tono offers six motorized ceiling TV lift models for displays from 32 to 77 inches, including versions with extra drop-down travel and swivel rotation — all made in India and backed by a 3-year warranty. Browse the models below, or see all our motorised TV lifts in India.
How a flip-down ceiling TV lift works
The lift holds the TV against the ceiling on a motorized hinged arm. When activated, the arm rotates the screen downward through roughly 90 degrees until it faces the room at viewing height. A second motion is available on selected models — see the mechanism types below. Operation is by remote, wall switch, or smart-home integration. A flip-down ceiling lift has four core components:
- Motorized lift mechanism — the motor, hinge and arm assembly that carries the display.
- Control system — remote, wall switch, or automation interface.
- Mounting bracket — secures the TV to the lift and holds it stable through the full range of motion.
- Safety sensors — detect obstructions and stop travel to prevent damage or injury.
Three mechanism types — which one you need
All six Tono models flip down from the ceiling. They differ in the secondary motion, and that difference determines the right model for your room.
Flip-down only
The screen rotates down from the ceiling to a fixed viewing angle. The simplest, most direct option where the ceiling height already places the screen at a comfortable level. Models: FL100M, FL100L.
Flip-down with drop-down travel
After flipping down, the screen also lowers vertically. This suits higher ceilings, where flipping alone would leave the TV too high for comfortable viewing. The extra travel brings the screen down to eye level. Models: FL100DM, FL100DL.
Flip-down with swivel
After flipping down, the screen rotates left and right, so it can be aimed at different seating areas — useful in open-plan rooms or spaces with more than one viewing position. Models: FLIP 55R, FLIP 75R.
Choosing the right model
Start with TV size
Screen size is the first filter. Each Tono model is engineered for a specific size range — match your display to the correct band rather than assuming a larger lift will work for a smaller TV.
- 32″–55″ displays — FL100M (flip-down), FL100DM (flip-down + drop-down), FLIP 55R (flip-down + swivel, 43″–55″).
- 65″–77″ displays — FL100L (flip-down), FL100DL (flip-down + drop-down), FLIP 75R (flip-down + swivel, 65″–75″).
Then match ceiling height to mechanism
Standard ceiling height with a comfortable resulting view: a flip-down model is enough. Higher ceiling where a flipped screen would sit too high: choose a drop-down model for the extra vertical travel. More than one seating area: choose a swivel model.
Confirm load capacity and weight
Check your TV’s weight against the model’s rated load capacity, including a safety margin. A ceiling-mounted lift carries its load overhead, so correct rating is non-negotiable.
Compare all Tono flip-down ceiling TV lifts
Shortlist by TV size and mechanism, then open the product page for full specifications.
| Model | TV size range | Mechanism | Swivel | Load capacity |
| FL100M | 32″–55″ | Flip-down | No | 30 kg |
| FL100L | 65″–77″ | Flip-down | No | 55 kg |
| FL100DM | 32″–55″ | Flip-down + drop-down | No | 30 kg |
| FL100DL | 65″–77″ | Flip-down + drop-down | No | 55 kg |
| FLIP 55R | 43″–55″ | Flip-down + swivel | Yes | 30 kg |
| FLIP 75R | 65″–75″ | Flip-down + swivel | Yes | 55 kg |
Specifications are indicative. Confirm exact load capacity and dimensions on each product page before ordering.
Where a flip-down ceiling TV lift makes sense
Rooms with limited or unsuitable wall space
Where there is no wall to take a TV — glazing, a fireplace, an open layout — the ceiling becomes the mounting surface. The screen is present only when needed.
Interiors where the screen should disappear
In design-led living rooms, bedrooms, and hospitality spaces, a flush ceiling-mounted lift removes the black rectangle from the room when the TV is off, preserving the intended look.
Multi-purpose and multi-seating spaces
Swivel models serve rooms with more than one viewing position, aiming the screen where it is needed without moving furniture.
Installation with Tono’s remote support
A ceiling TV lift is a structural installation. Tono provides full remote installation support — detailed fitting drawings and step-by-step guidance over a video call — so your local installer or electrician can fit it safely and correctly, with our team on call throughout. Before ordering, confirm:
- Ceiling structure — the ceiling must support the combined weight of the lift and TV, with margin. Reinforcement may be required; a false or plasterboard ceiling will usually need a fixed structural mounting point.
- Recess depth — the cavity above the ceiling must be deep enough to house the folded lift and TV.
- Power and cabling — a power supply at the lift location, plus signal cabling routed to allow free movement through the full range of travel.
- Viewing geometry — confirm the lowered screen position gives a comfortable eye-level view from the seating.
For project specifications, ceiling assessments, or custom requirements, contact the Tono team before finalizing ceiling work.
Frequently Asked Questions
(Rebuild these using the Yoast FAQ block so they output FAQ schema.)
What is a flip-down ceiling TV lift?
It is a motorized mount that holds a flat-screen TV against the ceiling and rotates it down into viewing position at the press of a button. When not in use, the screen folds back up against the ceiling, out of sight.
What is the difference between flip-down, drop-down and swivel models?
All Tono models flip down from the ceiling. Drop-down models add vertical travel after flipping, to bring the screen lower in high-ceilinged rooms. Swivel models add left-right rotation after flipping, so the screen can be aimed at different seating areas.
What size TV can a Tono ceiling lift hold?
Tono offers models for displays from 32 to 77 inches. Each model is rated for a specific size range — 32″–55″ or 65″–77″ for the FL100 series, and 43″–55″ or 65″–75″ for the FLIP swivel series. Match your display to the correct model and confirm its load capacity.
How is a flip-down ceiling TV lift installed?
Tono provides remote installation support: we supply detailed fitting drawings and guide your installer through the process over a video call, with our team on call throughout. Because it is a structural, overhead installation, the physical fitting to the ceiling should be carried out by a local installer or electrician who has assessed the ceiling first.
Can a flip-down ceiling TV lift be fitted to any ceiling?
The ceiling must be able to support the combined weight of the lift and TV and have enough recess depth to house the folded unit. False or plasterboard ceilings typically require a fixed structural mounting point. Your installer should assess the ceiling first; Tono supports the process remotely with drawings and guidance.
How is the lift controlled?
Depending on the model, operation is by handheld remote, wall switch, or integration with a smart-home system.
What warranty do Tono ceiling TV lifts come with?
Every Tono flip-down ceiling TV lift is made in India and covered by a 3-year warranty, with local service support and spare parts.
Does Tono ship ceiling TV lifts internationally?
Yes. Tono offers global shipping and works with international distributors. Contact the team for availability and lead times in your region.
Not sure which model fits your room? Share your TV size, ceiling height and seating layout, and the Tono team will recommend the right lift. See also our ceiling drop-down TV lifts if you want the TV to lower straight down rather than fold. Request a quote.
